Datos del producto:
|
| Color: | Negro o claro | Valor del ESD: | 10E5-10E9 |
|---|---|---|---|
| Tamaño: | Anchura 8m m, 12m m, 16m m, 24m m, 32m m, 44m m, 56m m, 72m m, 88m m | Material: | PS/PC/PET |
| Cintas de cubierta: | puede proporcionar | El rollo: | puede proporcionar |

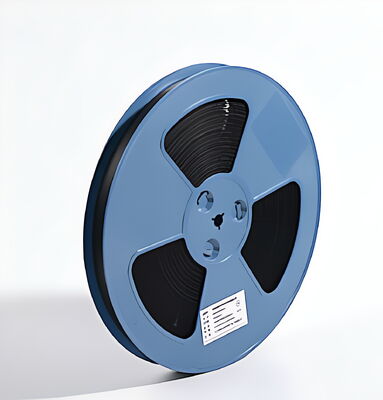

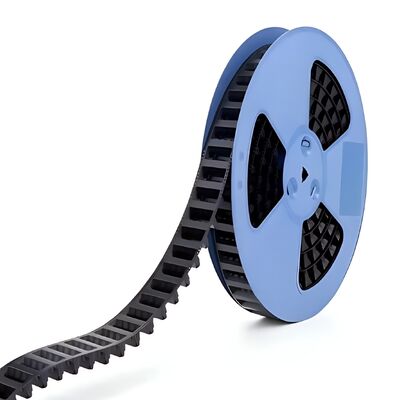

Embossed carrier tape for electronic components, supporting matched heat-seal / self-adhesive cover tape. RoHS certified, one-stop purchasing available.
Carrier tape specifications vary based on the dimensions of the components being packaged.
Standard Widths: Common industry sizes include 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, and 56mm.
Miniaturization Trend: With the increasing demand for smaller chips, carrier tape manufacturing has evolved toward high precision. We now offer ultra-narrow carrier tapes with a width of 4mm for micro-sized components.
Carrier tapes are primarily classified into two types: plastic (polymer) and paper. Embossed carrier tapes are predominantly made from plastic materials:
PC (Polycarbonate): Known for its exceptional mechanical strength, high transparency, and superior dimensional stability. It offers a high glass transition temperature and excellent heat resistance.
PS (Polystyrene): A cost-effective alternative with lower mechanical strength than PC. To enhance tensile strength, it is often manufactured as a three-layer composite sheet (e.g., PS/ABS/PS).
PET (Polyethylene Terephthalate): Offers mechanical strength comparable to PC, but its dimensional stability is slightly lower due to its crystalline structure.
Others: Includes ABS, APET, and various paper or PE composite materials used for stamped carrier tapes.
